Universal IO-Link Master with IIoT competence and logic editor



The SIG300 Sensor Integration Gateway is a high-performance IO-Link Master with eight ports (class A/B) that consolidates the data from the connected devices and forwards them to the higher level system. The gateway provides up to 16 A, which is sufficient power for energy-intensive sensors and actuators. With variants for PROFINET, EtherNet/IP and EtherCAT as well as a REST API version, the SIG300 can be integrated into almost any system environment. Thanks to the programmable logic editor, simpler tasks can be executed autonomously and remotely. This shortens the response times for automated processes. Furthermore, the integrated web server allows fast, intuitive parameterization.

SIG300 AT A GLANCE

Benefits:

• Allows vertical integration in state-of-the-art production environments – from sensor through to the PLC system and to the cloud solution
• High system compatibility through variants for the most commonly used Ethernet standards as well as a REST API variant
• High flexibility thanks to IO-Link ports that can also be configured as digital inputs or outputs
• Fast response times due to remote data processing and process control via an integrated logic editor
• Low cabling requirements thanks to consolidation of several sensor signals into a single IO-Link message
• Intuitive parameterization via an integrated web server

Features:

• 8 IO-Link input ports (Class A/B)
• Ethernet interfaces: PROFINET, EtherNet/IP and EtherCAT
• IIoT interfaces: REST API and MQTT
• Galvanically isolated pins for the power supply from class B ports
• Max. 16 A in the IO-Link Master with max. 4 A per port
• Programmable logic editor
• Configuration via web server
• Enclosure rating IP67

Advantages

Intelligent data integration for greater efficiency

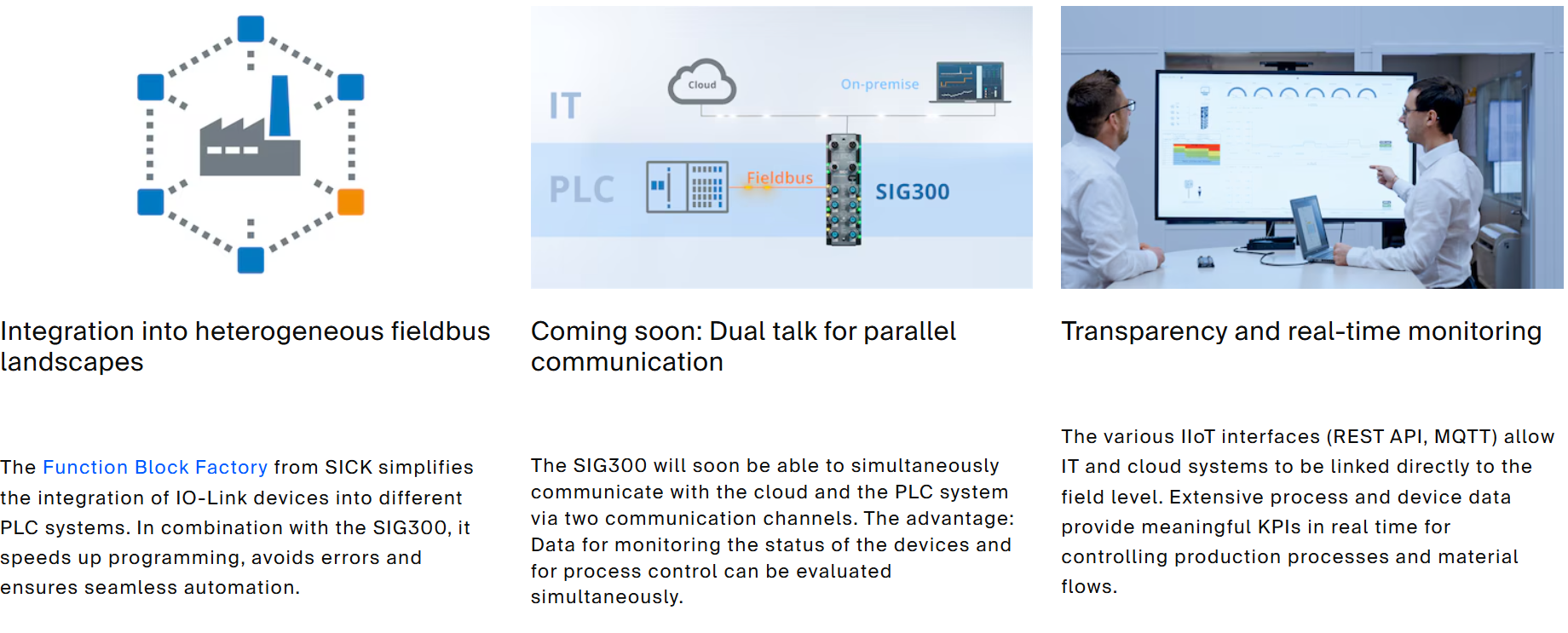

The SIG300 IO-Link Master integrates sensor and actuator data into Ethernet networks and IIoT applications. Remote data collection and pre-processing enables an efficient display and analysis of this information in higher-level IIoT environments. The IO-Link Master therefore makes a significant contribution to transparent processes and efficient communication between OT and IT. Thanks to the intuitive web-based user interface and the Function Block Factory, integration costs are significantly reduced.

High efficiency through intelligent data integration: The SIG300 ensures transparency, real-time monitoring and optimized process control.

Smart and flexible

The SIG300 facilitates the integration and control of digital I/O (DIO) and IO-Link devices. Thanks to intelligent device configuration and integrated control logic, SIG300 reduces complexity, simplifies integration processes and optimizes production processes. Eight IO-Link ports and a total output of 16 A offer high flexibility for demanding applications.

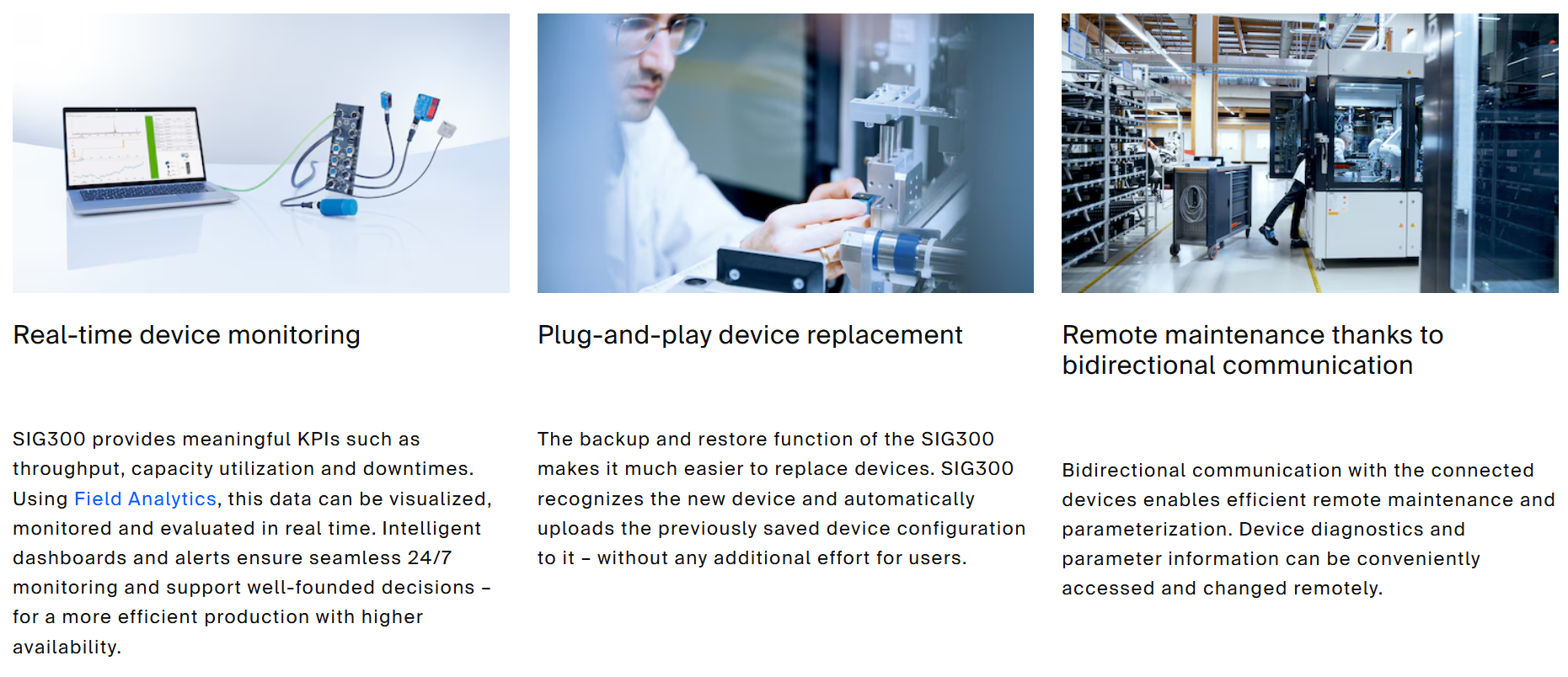

SIG300 makes device monitoring and maintenance efficient – for higher machine availability and lower maintenance costs.
