Details

---

Product Feature
Features

• Modular steady/flashing type signal tower lights
• Excellent visibility from a distance with the use of a special color diffusing lens
• The addition of modules and change in color arrangement can be achieved without the use of tools by using the Lock-type structure
• QTGA type offers a nifty integrated lens and cover for a simple aesthetically pleasing product
• Buzzer sound output : Sound volume of Max. 85dB at 1m
• Available in 2 customized options; sounds buzzer type and high volume(100dB) buzzer type
• Can be used with NPN open collector transistor driven input, which allows direct connection to a PLC
• Flashing rate : 60-80 flashes/min
• Materials : Lens-PC, Housing-ABS
• Ambient operating temperature : -30°C to +50°C
• Protection rating : Standard type-IP65, Built-in buzzer type-IP54
• Pre-wired is standard. Can customize the product with the M12 connector if requested
• Certificatess : CE Compliant, UL Listed
• Compliant with RoHS directive

Product Specifications

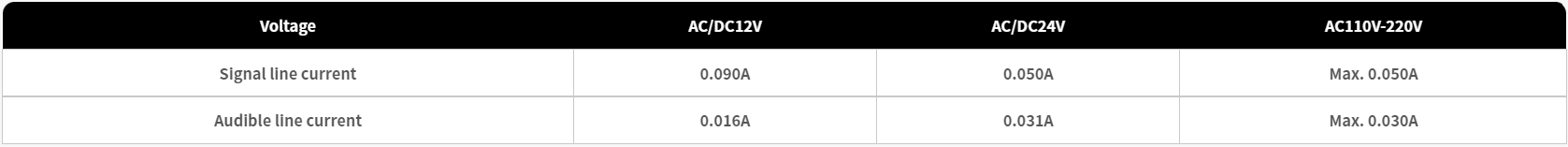

Signal/Audible Line Current (Per Each Layer)
Accessories

• TWS45
• TWA45
