Details

---

Product Feature
Features

• Ideal solution for building smart factories with state of the art technology
• Local Area Network(LAN) type product supports both HTTP protocol(Web browser) and TCP/IP protocol which is controlled by PC application program.
• LED signal tower light is an IOT product that can be controlled remotely.

Main Characteristics

• Provides MS Runtime libraries for developers to utilize in various PC applications
• Possible remote monitoring and controlling of equipment by PC application

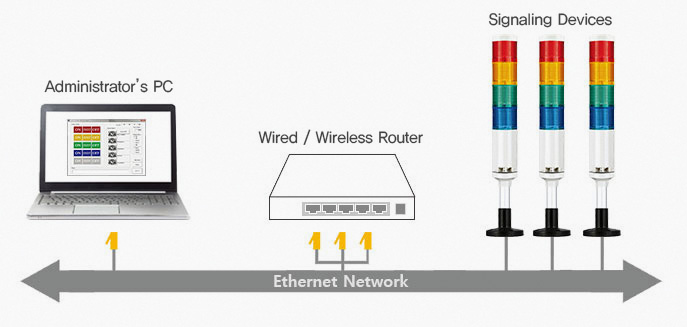

• LED signal tower light controlled by PC application program though the network
• Ethernet cable and power cable are provided with the product
• Communication speed : 10M/ half duplex method
• Volume : Buzzer – Max. 90dB at 1m/ Sounder - Max. 85dB at 1m
• Protection rating : IP23
• Compliant with RoHS directive

Operational Environment

• OS Support(32bit / 64bit): Windows XP, Win 7, Win 10
• Library Support: VC++, VB, Delphi(32bit only), C#(64bit only)

Product Specifications
Signal Sound Current (Per Layer)


Accessories

• TWS45
• TWA45
