QTG50(M)L-USB

QTG50(M)L-USB


Specifications
Details

Product Feature
Features
  • Ideal solution for building smart factories with state of the art technology

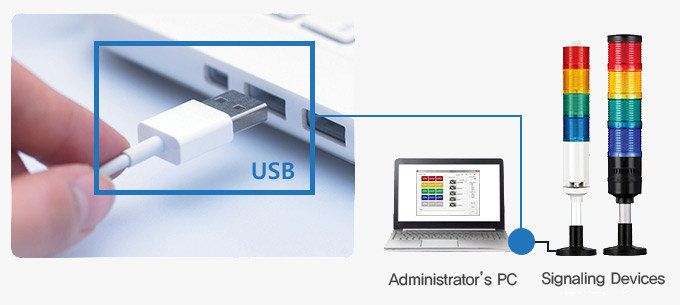

  • LED tower light that is fully controlled by a PC application via USB port connection
  • Possible to use USB cable connection without an additional power supply
Main Characteristics
  • Provides MS Runtime libraries for developers to utilize in various PC applications
  • Controlled by PC application
  • LED Module Standard Operation: 2 layers will operate at the same time.
  • 5 built-in Buzzer tones available
  • Volume : Buzzer – Max. 90dB at 1m
  • USB communication cable is comprised of VCC, D-, D +, GND, and shield
  • Protection rating : IP54/65
  • Compliant with RoHS directive
Operational Environment
  • OS Support(32bit / 64bit): Windows XP, Win 7, Win 10
  • Library Support: VC++, VB, Delphi(32bit only), C#(64bit only)
  • Support host that is USB 1.1 or higher
  • Power supply : DC 5V/500mA rated PC USB * 2 ports are required
  • Multiple connections on 1 PC is optionally available (up-to 4 units).
※ The Y cable included with the product has a communication and power connection.
※ Multiple LED modules operate within the current range of USB port current coverage.

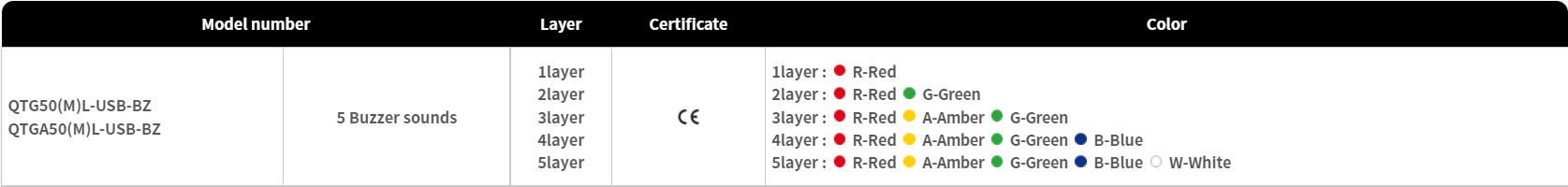

Product Specifications

Accessories
  • LB18
  • LW18
  • QL18
  • QZ18
  • SCREW & NUT
  • SL18
  • SZ18
  • TWS45
  • TWA45
