Details

---

Product Feature
Features

• Ideal solution for building smart factories with state of the art technology
• Wireless monitoring and control of signal tower light via PC or smartphone
• WIZ series can integrate mismatch among old machineries, latest equipment and various brands

Main Characteristics

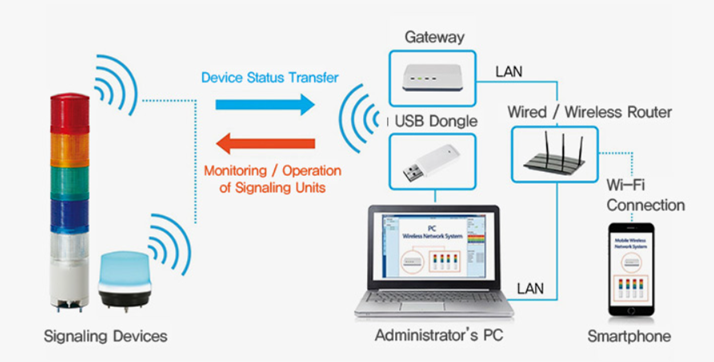

• Possible to control the product via external communication and PC application software
• The product transfers visual and audible warning signals as well as data being monitored remotely by means of wireless communication.
• Productivity and failure rate management for each machine
• Cost effective solution for an advanced manufacturing network system
• Mesh topology uses 2.4GHz local wireless telecommunication to enable stable communication even under the harsh environmental conditions.
• The multi-hop feature allows for long distance communication up-to 10 HOP (100 meter between the units).
• Production equipment relocation would be convenient because the wireless network system does not require a telecommunication cable.
• 5 built-in buzzer tones are available.
• Volume : Buzzer – Max. 85dB at 1m
• Protection rating : IP54/IP65
• Certificates : KC DC24V, CE RED, FCC
• Compliant with RoHS directive

Operational Environment

• OS Support: Windows 10
• Library Support: C#(64bit only)
• Wireless communication protocol : Zigbee(IEEE802.15.4)
• 2.4GHz radio communication available

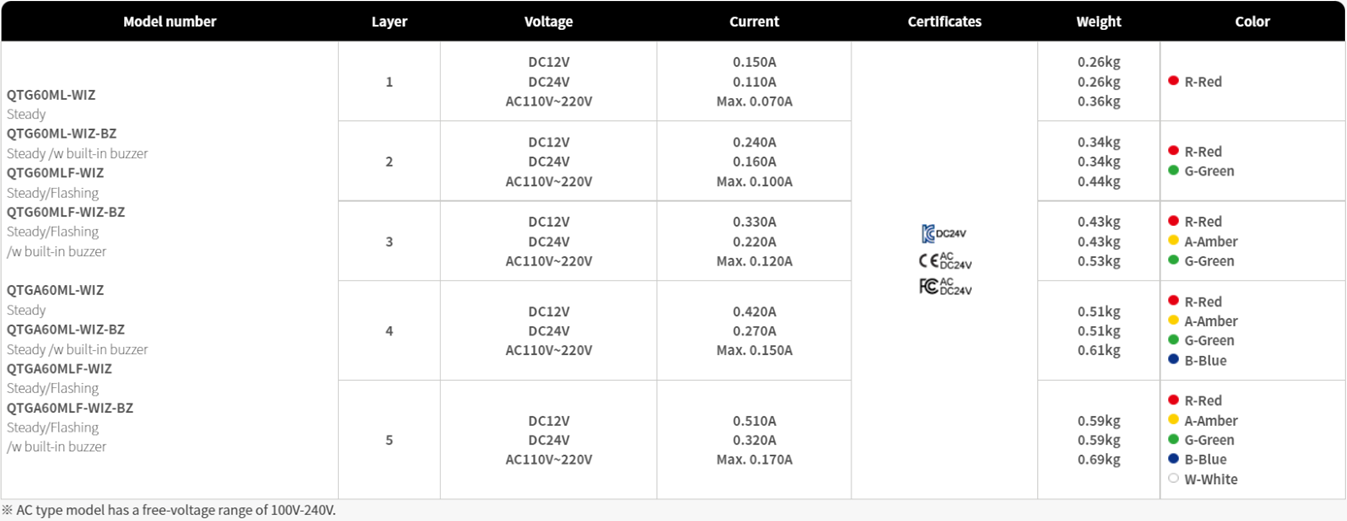

Product Specifications


Accessories

• TWS45

• TWA45
