Details
At a glance
- Very small housing
- RGB 3-color technology
- Laser version with long sensing distance
- Simple teach-in (when machine is stopped or during operation)
- Integrated switching threshold adjustment for high-gloss objects
- Reliable operation for jittering materials
- Switching frequency of 10 kHz
Your Benefits
- Compact design fits in limited space applications
- Very good contrast resolution for detecting print marks, even where the variation between the mark and the background is minimal
- Laser version for the smallest marks and long sensing distances
- Automatic adaptation for high-gloss objects ensures high throughput
- Reliable operation for jittering materials
- Accurate positioning in rapid production processes
- Red/green/blue LEDs detect all registration marks in all applications
Technical data overview
1) Average service life: 100,000 h at TU = +25 °C.2) Average service life: 50,000 h at TU = +25 °C.
3) With light/dark ratio 1:1.
4) Signal transit time with resistive load.

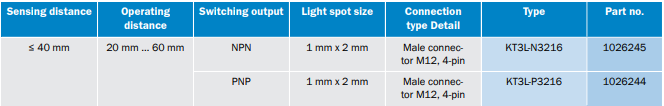

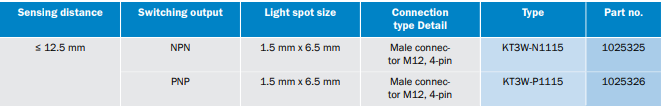

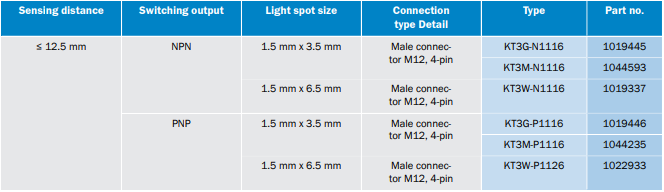

KT3 Full Product Listing:
For more information please click on below link:
PDF file:https://cdn.sick.com/media/familyoverview/9/39/139/familyOverview_KT3_g141139_en.pdf
View more about KT3 on main site
